Name: DischargePoint

Display Field: FACILITYID

Type: Feature Layer

Geometry Type: esriGeometryPoint

Description: <DIV STYLE="text-align:Left;"><DIV><P><SPAN><SPAN>Storm Water Feature Class</SPAN></SPAN></P></DIV></DIV>

Service Item Id: ce87a8d990a043558bccef28fc5cfe53

Copyright Text: GIS Division, Utility Mapping Team

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -9025606.16014031
YMin: 4023103.492474486
XMax: -8996901.117020315
YMax: 4045255.7218246204
Spatial Reference: 102100  (3857)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• FACILITYID ( type: esriFieldTypeString, alias: Facility ID, length: 25 )
• FACILITYIDINDEX ( type: esriFieldTypeInteger, alias: Facility ID Index )
• LEGACYID ( type: esriFieldTypeString, alias: Legacy ID, length: 25 )
• INSTALLDATE ( type: esriFieldTypeDate, alias: Install Date, length: 8 )
• DISCHID ( type: esriFieldTypeString, alias: Discharge Identifier, length: 20 )
• DISCHSTRUCTTYPE ( type: esriFieldTypeString, alias: Discharge Structure Type, length: 50 , Coded Values: [Rip Rap: Rip Rap] , [Curb Cut: Curb Cut] , [Spillway: Spillway] , ...8 more... )
• MAJOROUTFALL ( type: esriFieldTypeString, alias: Major Outfall, length: 5 , Coded Values: [Y: Yes] , [N: No] )
• OUTFALL ( type: esriFieldTypeString, alias: Outfall, length: 50 , Coded Values: [Y: Yes] , [N: No] )
• WATERSHED ( type: esriFieldTypeString, alias: Watershed, length: 50 )
• SUBWATERSHED ( type: esriFieldTypeString, alias: Subwatershed, length: 50 )
• PERMIT ( type: esriFieldTypeString, alias: Permitted MS4 Outfall, length: 5 , Coded Values: [Y: Yes] , [N: No] )
• PERMITID ( type: esriFieldTypeString, alias: Permit Identifier, length: 100 )
• OPENCLOSED ( type: esriFieldTypeString, alias: Open or Closed, length: 20 , Coded Values: [OD: Open Drainage] , [CP: Closed Pipe] )
• MATERIAL ( type: esriFieldTypeString, alias: Discharge Material, length: 50 , Coded Values: [ABS: ABS Plastic] , [AC: Asbestos Cement] , [ASP: Asphalt] , ...36 more... )
• CLOSEDDISCHNUM ( type: esriFieldTypeString, alias: Closed Discharge Number, length: 5 , Coded Values: [D: Double] , [Other: Other] , [S: Single] , ...1 more... )
• CLOSEDSHAPE ( type: esriFieldTypeString, alias: Closed Shape, length: 100 , Coded Values: [A: Arched] , [B: Barrel] , [C: Circular] , ...10 more... )
• CLOSEDDIAMETER ( type: esriFieldTypeDouble, alias: Closed Diameter , Coded Values: [6: 6"] , [8: 8"] , [10: 10"] , ...28 more... )
• CLOSEDHEIGHT ( type: esriFieldTypeDouble, alias: Closed Height )
• CLOSEDWIDTH ( type: esriFieldTypeDouble, alias: Closed Width )
• OPENDEPTH ( type: esriFieldTypeDouble, alias: Open Depth )
• OPENTOPWIDTH ( type: esriFieldTypeDouble, alias: Open Top Width )
• OPENBOTTOMWIDTH ( type: esriFieldTypeDouble, alias: Open Bottom Width )
• INVERTDEPTH ( type: esriFieldTypeDouble, alias: Invert Depth )
• SUBMERGED ( type: esriFieldTypeString, alias: Submerged, length: 8 , Coded Values: [Fully: Fully] , [Partly: Partly] , [N: No] )
• SUBMERGEDTYPE ( type: esriFieldTypeString, alias: Submerged Type, length: 50 , Coded Values: [Water: Water] , [Sediment: Sediment] , [Water and Sediment: Water and Sediment] )
• INSTREAM ( type: esriFieldTypeString, alias: In Stream, length: 5 , Coded Values: [Y: Yes] , [N: No] )
• AVGDISCH ( type: esriFieldTypeString, alias: Average Discharge, length: 10 )
• PEAKDISCH ( type: esriFieldTypeString, alias: Peak Discharge, length: 10 )
• LIFECYCLESTATUS ( type: esriFieldTypeString, alias: Life Cycle Status, length: 25 , Coded Values: [Active: Active] , [Inactive: Inactive] , [Proposed: Proposed] , ...3 more... )
• ACTIVEFLAG ( type: esriFieldTypeSmallInteger, alias: Active Flag , Coded Values: [0: False] , [1: True] )
• OWNEDBY ( type: esriFieldTypeSmallInteger, alias: Owned By , Coded Values: [1: City of Columbia] , [2: SCDOT] , [3: Richland County] , ...6 more... )
• MAINTAINEDBY ( type: esriFieldTypeSmallInteger, alias: Maintained By , Coded Values: [1: City of Columbia] , [2: SCDOT] , [3: Richland County] , ...6 more... )
• LOCATION ( type: esriFieldTypeString, alias: Location Description, length: 250 )
• COMMENTS ( type: esriFieldTypeString, alias: Comments, length: 250 )
• STUBPT ( type: esriFieldTypeString, alias: Stub Point, length: 30 , Coded Values: [Stub Point: Stub Point] , [N/A: N/A] )
• REASONFORSTUB ( type: esriFieldTypeString, alias: Reason For Stub Point, length: 255 , Coded Values: [Edge of Basin: Edge of Basin] , [Edge of Project Area: Edge of Project Area] , [Inaccessible: Inaccessible] , ...5 more... )
• DATASOURCE ( type: esriFieldTypeString, alias: Data Source, length: 30 , Coded Values: [ASB: Asbuilt/Record Drawing] , [DES: Design Drawing] , [IMG: Imagery] , ...10 more... )
• LASTEDITOR ( type: esriFieldTypeString, alias: Last Editor, length: 50 )
• LASTUPDATE ( type: esriFieldTypeDate, alias: Last Update Date, length: 8 )
• CREATOR ( type: esriFieldTypeString, alias: Creator, length: 50 )
• CREATIONDATE ( type: esriFieldTypeDate, alias: Creation Date, length: 8 )
• GPSWHO ( type: esriFieldTypeString, alias: GPS Who, length: 50 )
• GPSDATE ( type: esriFieldTypeDate, alias: GPS Date, length: 8 )
• NORTHING ( type: esriFieldTypeDouble, alias: Northing )
• EASTING ( type: esriFieldTypeDouble, alias: Easting )
• ELEVATION ( type: esriFieldTypeDouble, alias: Surveyed Elevation )
• INVERTELEV ( type: esriFieldTypeDouble, alias: Invert Elevation )
• ESTAVGACCURRACY ( type: esriFieldTypeDouble, alias: Estimated Average Accurracy )
• ENABLED ( type: esriFieldTypeSmallInteger, alias: Enabled , Coded Values: [0: False] , [1: True] )
• ANCILLARYROLE ( type: esriFieldTypeString, alias: ANCILLARYROLE, length: 10 , Coded Values: [None: None] , [Source: Source] , [Sink: Sink] )
• CENTERELEV ( type: esriFieldTypeDouble, alias: Stucture Center Elevation )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

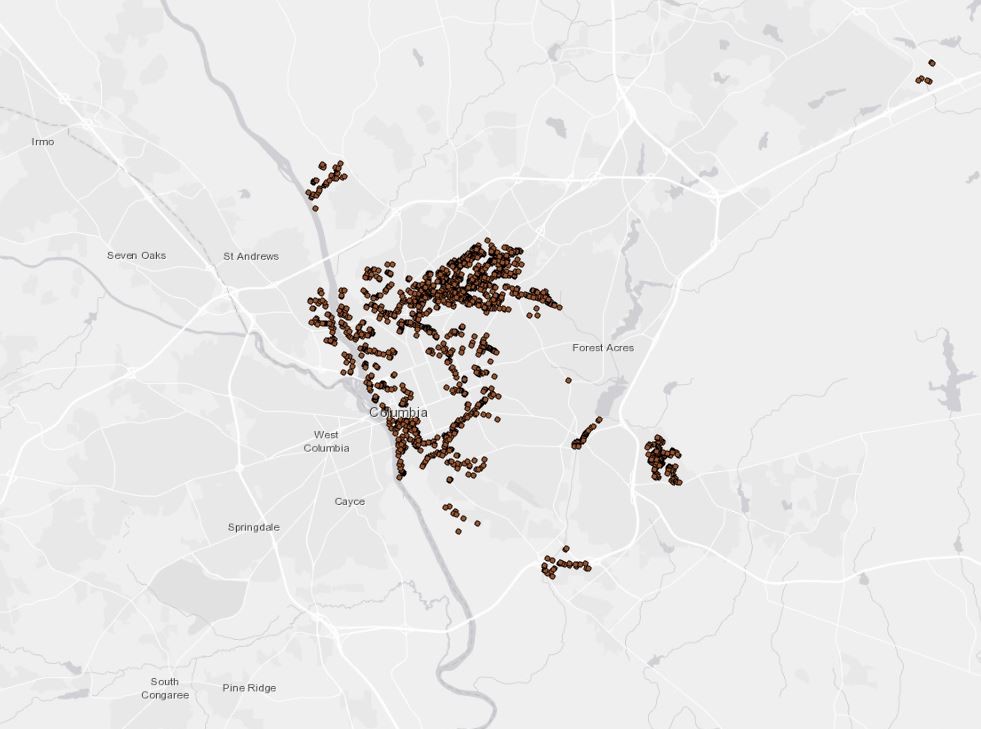

  Iteminfo   Thumbnail   Metadata
