Name: GIS.SDE.swVirtualReach

Display Field: FACILITYID

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: <DIV STYLE="text-align:Left;"><DIV><P><SPAN><SPAN>Storm Water Feature Class</SPAN></SPAN></P></DIV></DIV>

Service Item Id: ce87a8d990a043558bccef28fc5cfe53

Copyright Text: GIS Division, Utility Mapping Team

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -9024262.079419337
YMin: 4020747.057982639
XMax: -8994107.109698392
YMax: 4048067.505235235
Spatial Reference: 102100  (3857)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [178, 178, 178, 255]
Width: 2
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• FACILITYID ( type: esriFieldTypeString, alias: Facility ID, length: 25 )
• FACILITYIDINDEX ( type: esriFieldTypeInteger, alias: Facility ID Index )
• USNODEID ( type: esriFieldTypeString, alias: From Node, length: 50 )
• DSNODEID ( type: esriFieldTypeString, alias: To Node, length: 50 )
• LEGACYID ( type: esriFieldTypeString, alias: LegacyID, length: 25 )
• INVDATE ( type: esriFieldTypeDate, alias: Inventory Date, length: 8 )
• EASEMENT ( type: esriFieldTypeString, alias: Easement, length: 50 )
• COMMENTS ( type: esriFieldTypeString, alias: Comments, length: 250 )
• DATASOURCE ( type: esriFieldTypeString, alias: Data Source, length: 25 , Coded Values: [ASB: Asbuilt/Record Drawing] , [DES: Design Drawing] , [IMG: Imagery] , ...10 more... )
• BMPID ( type: esriFieldTypeString, alias: BMP ID, length: 25 )
• SUBWATERSHED ( type: esriFieldTypeString, alias: Subwatershed, length: 50 )
• UPNORTHING ( type: esriFieldTypeDouble, alias: Upstream Northing )
• UPEASTING ( type: esriFieldTypeDouble, alias: Upstream Easting )
• DNNORTHING ( type: esriFieldTypeDouble, alias: Downstream Northing )
• DNEASTING ( type: esriFieldTypeDouble, alias: Downstream Easting )
• UPELEV ( type: esriFieldTypeDouble, alias: Upstream Surveyed Elevation )
• DNELEV ( type: esriFieldTypeDouble, alias: Downstream Surveyed Elevation )
• ENABLED ( type: esriFieldTypeSmallInteger, alias: Enabled , Coded Values: [0: False] , [1: True] )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE_Length ( type: esriFieldTypeDouble, alias: SHAPE_Length )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

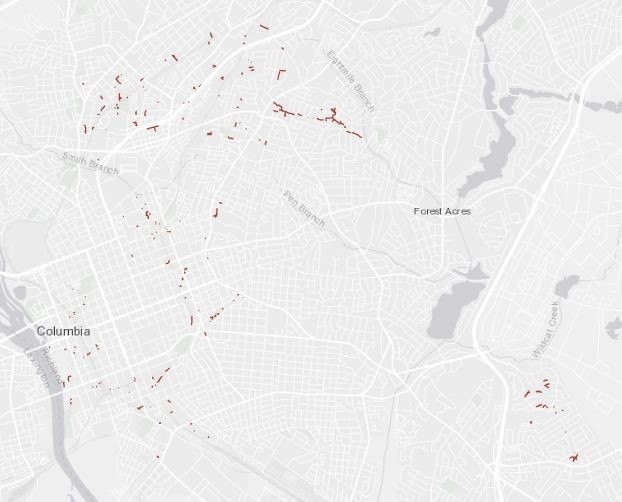

  Iteminfo   Thumbnail   Metadata
